SCULPFUN S9 Laser Module 5.5w for Laser Engraver 90W Effect

(53 customer reviews)

18,999.00 (Incl. GST)

SCULPFUN S9 laser module 90W effect laser head, used for laser engraver laser engraving machine laser cutter wood acrylic cutting tools (90W CO2 laser effct)
  • Widely compatible design
  • 90W effect laser beam shaping technology
  • Fast fixed focus design
  • Circle eye protection cover design
  • General 12V/PWM modulation board

In stock

In stock

Check Estimated Delivery at
Add 999.00 to cart and get free shipping! Free shipping over 999/-
13 People watching this product now!

Mechblock Shopping Event

Hurry and get discounts on all Mechblock Products up to Rs.1000

Coupon code: MECHBLOCK

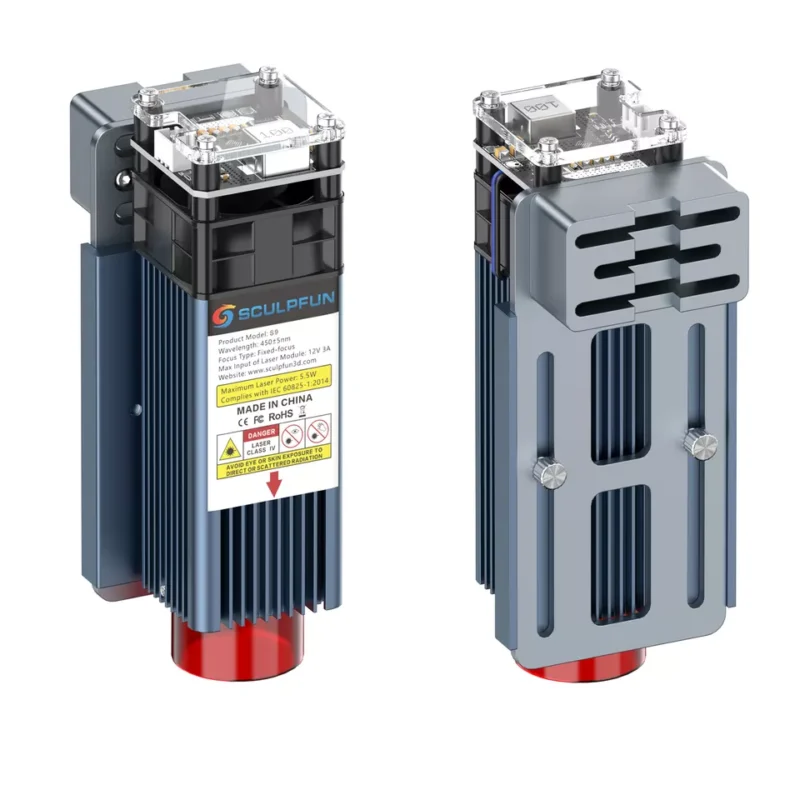

SCULPFUN S9 laser module 5.5w for Laser Engraver 90W effect laser head, used for laser engraver laser engraving machine laser cutter wood acrylic cutting tools 90W CO2 laser effect)
Main Feature:

Widely compatible design: The SCULPFUN laser module has a clever and widely compatible structural connection device, which can be well adapted to different laser engraving machines, laser cutting machines, 3D printers, CNC milling machines, etc. It can be installed on a variety of brand machines, such as SCULPFUN, ATOMSTACK, ORTUR laser engraving machine, or other DIY type machines.

90W effect laser beam shaping technology: S9 uses the latest 5.5W laser beam shaping technology ,the effect of this technique is to get a super-high-density energy laser beam , it is more than just a thinner focus, the entire beam is very thin. It has an ultra-fine 0.06mm sharp laser focus, with super cutting penetration and precision, he can cut up to 15mm thick wood, 10mm acrylic, carve ceramics and stainless steel, this is almost beyond the effect of 90W CO2 laser.

Fast fixed focus design: The S9 laser module has the fastest focusing design on the market. It combines a fixed focus lens and a sliding design. You only need to slide the laser and tighten the screws to complete focusing. This makes the use of the laser very simple. Using it on different machines does not affect its sliding fixed focusing function.

Circle eye protection cover design: The laser filter cover filters 98% of the ultraviolet light to the eyes. You and the people around you can watch laser engraving from all angles without wearing goggles. At the same time, it can prevent animals from catching the laser spot.

General 12V/PWM modulation board: It uses a common 12V/PWM modulation board, which can be adapted to common GRBL or CNC motherboards. You can view product pictures for details.

H8d4ab690df344aad9a431ce5f14a1b27A
Ha61ca98de9124841952af8894bfffe9eu
Hffecb9fa74c94735833d1203ce9a2838a
Hd1299a8378494002aa29757d694b754er
H6c262b0744014a579c5f193e30942d989
Ha96c4d39425643e782137959b235a541K
H2d8aec85e7684f198c0df1639298a02aB
Hbd12d752741942c9bccfd1a738a8f00a6
H9b099f516d8f47cb83491d5a8aac9249N
H6b2aec9503a14647a1341b3b576b6c06d



Product model:? SCULPFUN S9 Laser module

Applicable machines:? laser engraving machines such as SCULPFUN, ATOMSTACK, ORTUR, ELEKSMAKER, or DIY 3D printers, CNC machine tools.

Engraving materials:? paper, paper, cardboard, plastic, white, PCB board, alumina, stainless steel, black metal, ceramic

Cutting material:? thin board, acrylic board, cardboard, non-woven fabric, bamboo, some plastic board;

Laser effect power:? 90W (cutting effect similar to 90W CO2 laser)

Laser output power:? 5.5-6W (light energy)

Laser wave length? 455±5nm

Laser type and fixed focus method:? fixed focus laser, fixed focus through 20mm measuring column

Laser protective cover:? the ring-shaped violet filter cover protects the user’s eyes and prevents animals, etc. from contacting the laser spot.

Laser shell material:? aluminum alloy

Circuit Board Size:? 40*40mm

Circuit Board:12V/PWM modulation board

Input voltage:? 12V

Max Input of laser module:12V 3A

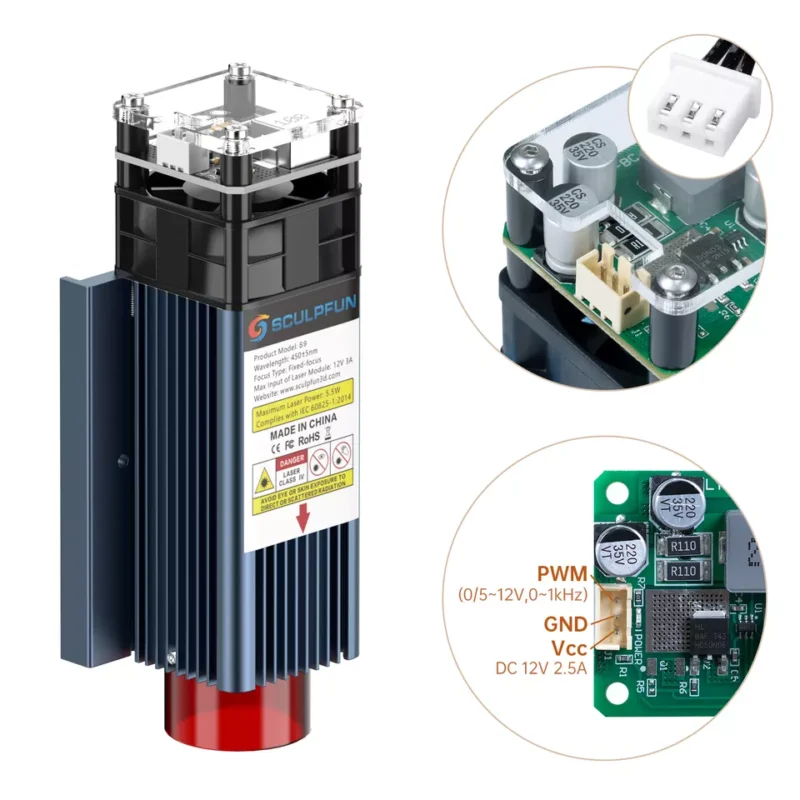

Wire Rod:HY2.0, 3Pin terminal (3-core cable, A: PWM +, B: GND, C: VCC ).

Fan:12V 0.15A 4020 fan

Fan speed:? 10000 rpm

Operating temperature:? -20 ℃ to 70 ℃

Package weight:? 0.5kg

Packing size:? 11*12*18cm

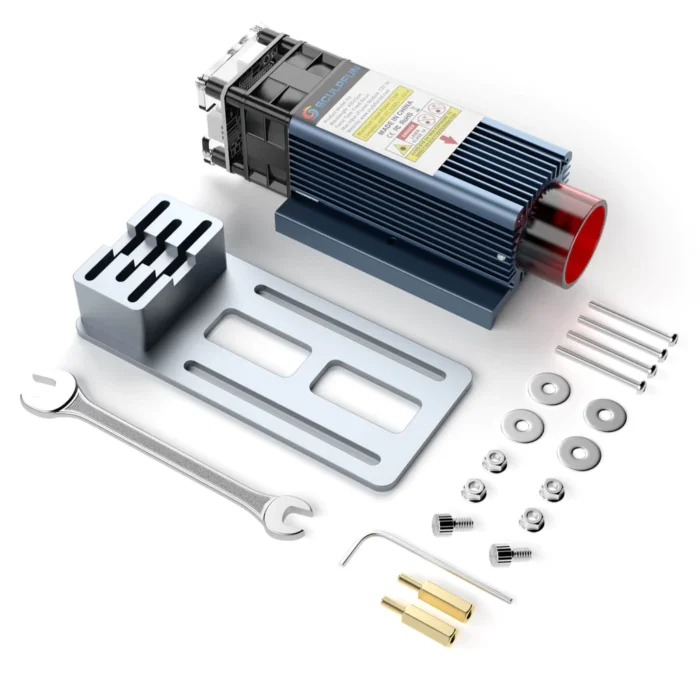

Packing List

Laser head*1

Multi-function structural connection device *1

20mm measuring column*1

Screws and tool kit*1



Precautions

1.For detailed machine instructions, please refer to the manual for parameter settings.
2.Before installing and using the laser, you should understand the adaptability and the maximum input voltage and current to avoid damage to the laser.
3.Do not touch the laser with your hands, otherwise you may burn your hands.
4.Please avoid strong impact on the machine.
5.It is forbidden for children under 14 years old to use this product. Children over 14 years old need adult supervision.
6.Do not apply the laser directly to any specular reflection object, which may cause injury to the operator or burn the laser.
