Advantages:Rust-resistant coating process, stable three-jaw chuck structure, fine workmanship, sturdy and practical jaws, excellent craftsmanship for maximizing the lifespan.

Applications:The fourth axis can be used for three-dimensional processing of cylinders, bent pipes, and circles. The fourth-axis engraving machine can be used for carving spirals, scars, bamboo joints, etc.

Unlock Precision:4th Axis CNC Rotary Module Kit for TTC450

Maximum clamping diameter for round cylinders:60mm

Minimum clamping diameter for round cylinders:4mm

Maximum clamping length for round cylinders:Depending on the machine’s working length. (Distance occupied by the chuck kit and top pin kit needs to be subtracted.)

Minimum clamping length for round cylinders:Depending on the machine’s tool head.

Chuck reduction ratio:4:1

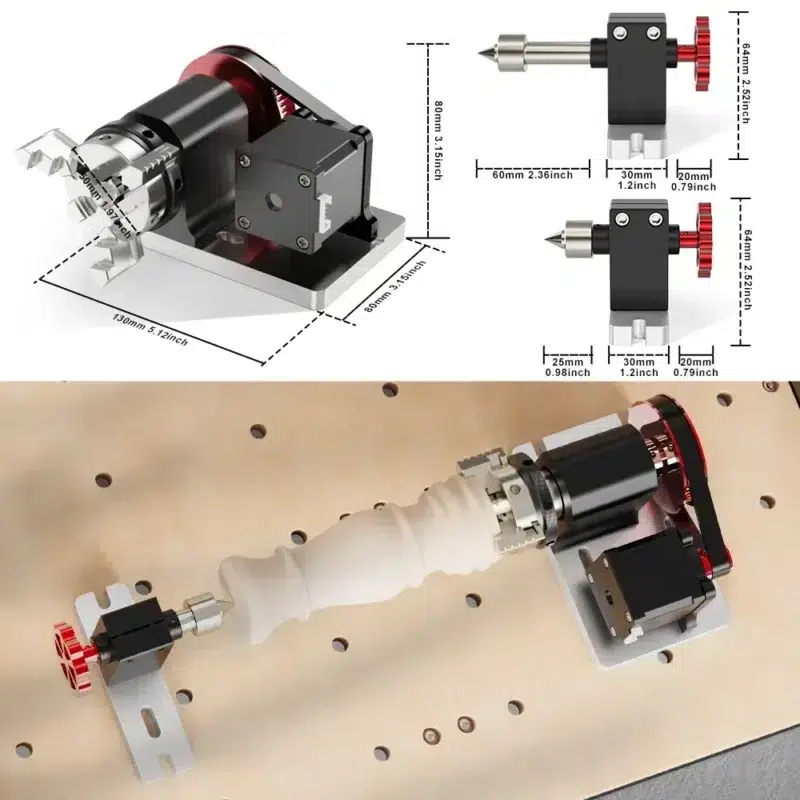

Center height:50mm, Total height: 76.5mm

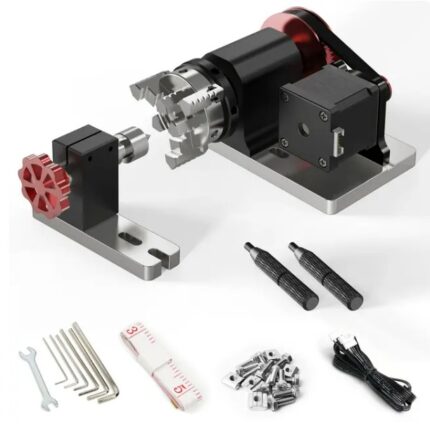

Package Include :

1*TwoTrees CNC 4th Axis Rotary Axis For TTC450 CNC Milling Machine
