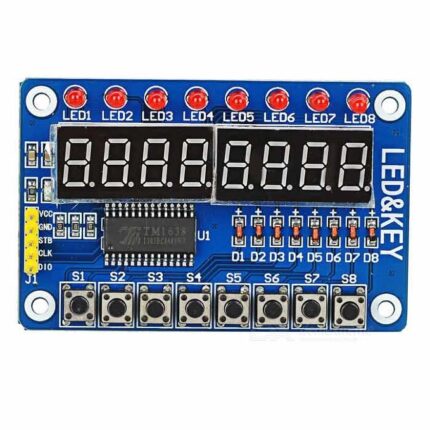

TM1638 Button Digital LED Display Module

(43 customer reviews)

190.00 Incl GST (161.02 +18%GST)

  • Use TM1638 digital tube drive chip to drive a common cathode LED digital tube.
  • Can be extended to 3 * 8 buttons, led digital tube, and can be controlled separately.
  • Support 8 brightness control, led digital tube, and use the same brightness.
  • Support cascading up to 6 of the same module.
  • 8 LED, 8-bit digital tube and 8 buttons, common cathode LED digital tube, such as STC microcontroller can be directly connected.
EAN: 8903470468429 SKU: MB-BDLDM Category: Tag:

1 in stock

1 in stock

Processing time: 1 days

You need extra 190 Points for get this product for free

Check Estimated Delivery at

Shipping to IN
Add 1,999.00 to cart and get free shipping!
12 People watching this product now!

Mechblock Shopping Event

Hurry and get discounts on all Mechblock Products up to Rs.1000

Coupon code: MECHBLOCK

The TM1638 Button Digital LED Display Module is used in chip TM1638, a collection of these three common MCU peripheral circuit, the biggest feature just takes three microcontroller IO port to drive, do not need to scan the display and key scanning microcontroller intervention, and only need to read the relevant register send display data or test button, save MCU resources.

We usually use an external microcontroller with 8 LEDs, 8 digital tubes, and eight keys which will occupy the number of IO ports, far more than three IO mouth it, but with this module can be achieved. The practical application of key sensitivity displays good results. Wiring: VCC GND connected to 5V power supply, STB CLK DIO connected microcontroller IO port. The module comes with 8 buttons, 8 LED, 8 digital tubes, and common cathode LED digital tubes, such as an STC microcontroller that can be directly connected


Features:

  • Use TM1638 digital tube drive chip to drive a common cathode LED digital tube.
  • Can be extended to 3 * 8 buttons, led digital tube, and can be controlled separately.
  • Support 8 brightness control, led digital tube, and use the same brightness.
  • Support cascading up to 6 of the same module.
  • Wiring: VCC GND connected the 5V power supply, STB CLK DIO connected microcontroller IO port.
  • 8 LED, 8-bit digital tube and 8 buttons, common cathode LED digital tube, such as STC microcontroller can be directly connected.

Specifications:

Rated Voltage DC 12V
Voltage Range DC 7.0V-13.6V
Input Current 0.24A
Rated Speed 9500RPM
Temperature Range -10°C ~ 70°C

Package Includes:

  • 1 x TM1638 Button Digital LED Display Module
Weight 0.1 kg
Brand

Condition

HSN Code

15 Days Warranty


This item is covered with a standard warranty of 15 days from the time of delivery against manufacturing defects only. This warranty is given for the benefit of Mechblock customers from any kind of manufacturing defects.  Reimbursement or replacement will be done against manufacturing defects.


What voids warranty:

If the product is subject to misuse, tampering, static discharge,mishandelling of the product, accident, water or fire damage, use of chemicals & soldered or altered in any way.
