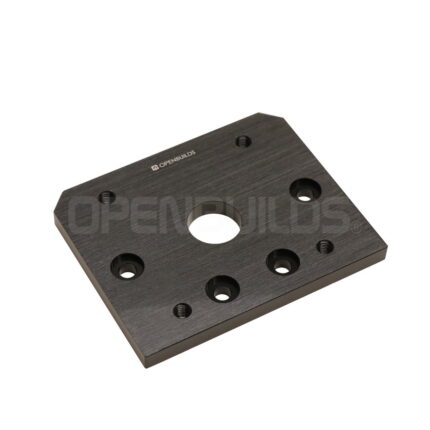

C-Beam Motor Mount Plate

₹799 Incl GST (₹677 +18%GST)

This mounting plate allows for easy attachment of a Nema 23 stepper motor to C-Beam Linear Rail. Includes bearing hole for lead screw transmission. Additional countersunk holes for flush mounts make this plate a great choice for your project

Brand

OPENBUILDS

Condition

New

HSN

84439090

In stock

Compare
Add to wishlist
57 People watching this product now!
EAN: 8903470349964 SKU: CMOUNT Categories: C-Beam Plates, Motor Plates, OpenBuilds, Plates Tags: Motor Mount Plate, Mount Plate, plate
Share:
  • Description
  • Reviews (0)
  • About OPENBUILDS
  • WARRANTY
Description

This mounting plate allows for easy attachment of a Nema 23 stepper motor to C-Beam Linear Rail. Includes bearing hole for lead screw transmission. Additional countersunk holes for flush mounts make this plate a great choice for your project.

Product Details:
  • Qty: 1pcs
  • Material: Aluminum
  • Thickness: 6mm
  • Size:T6*80mm*64.8mm
  • Surface: Brushed and Anodized
  • Color: Black

PL0022 6
