The Solid V Wheel is a strong wheel that resists deflection due to its solid nature.
This wheel style was produced for two reasons.
— First is for builds where heavier loads are required and less compression in the delrin is desired. Many of these wheels could be added to a gantry to allow an even distribution of the load across them.
— Second is for improved performance of the belt and pinion system to give the belt a flat surface to ride on. These wheels are individually milled for consistent high precision and tolerance.
Model: VK0001
Material: POM
Size: 10.2 x 23.9 mm

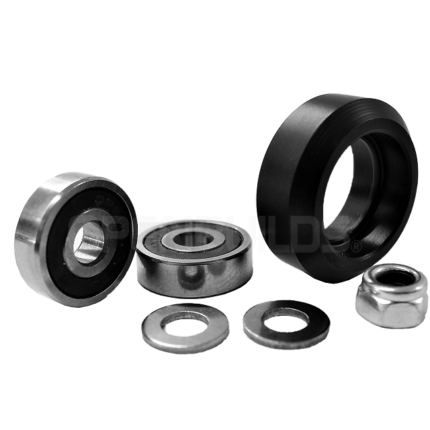

Included
1 x Solid V Wheel
2 x Ball Bearings – 625 2RS
2 x 5 mm Precision Shim
1 x Lock Nut with Nylon Insert
The Solid V Wheel is great for use with the V-Slot Linear Guide System.
Note: The precision shims are placed in-between the two bearings. To assemble, first push one bearing into the wheel. Then using the screw as a guide push the 2 precision shims and 2nd bearing into the other side of the wheel.
