DDCS V4.1 4Axis Offline CNC Control Box System with MPG Handwheel CNC Controller – BULKMAN

DDCS V4.1 4Axis Offline Control Box is an industrial-grade CNC control box, and it is a high-performance control system specially designed to meet the needs of industrial manufacturing. Its rugged exterior and state-of-the-art technology ensure precise control of all CNC machine functions. Its adaptability to various machining tasks provides stability and adaptability, making it a reliable partner for excellent machining results.

Industrial-grade CNC control box, and it is a high-performance control system specially designed to meet the needs of industrial manufacturing. Its rugged exterior and state-of-the-art technology ensure precise control of all CNC machine functions. Its adaptability to various machining tasks provides stability and adaptability, making it a reliable partner for excellent machining results.

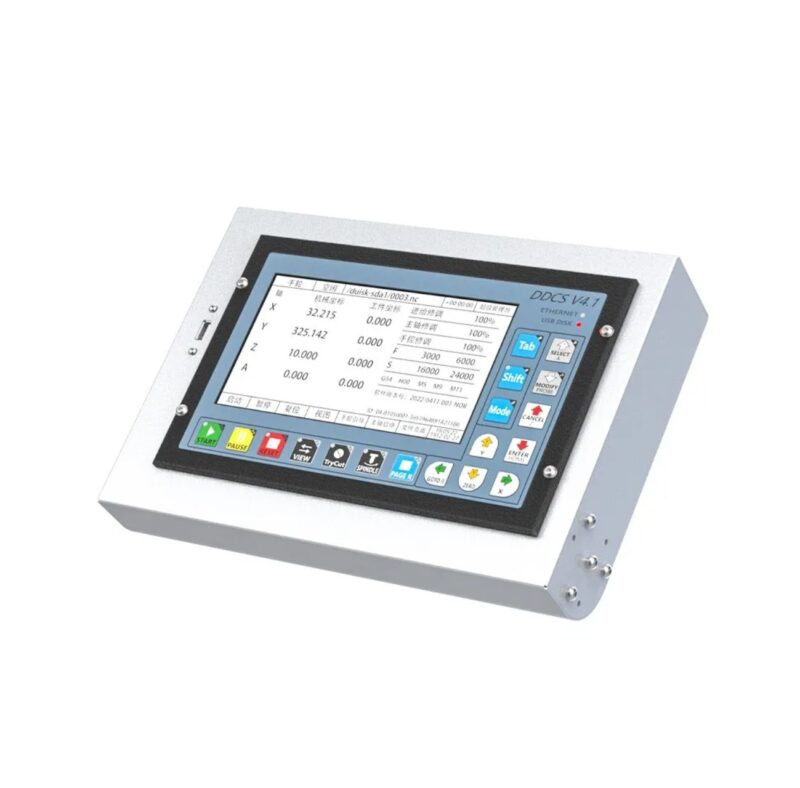

• 【Model Number】 DDCS V4.1 ; 7 inches TFT screen, resolution ratio: 1024×600 ,17 operation keys; Differential Mode and Double Pulse Mode output signal for optional, Maximum interpolation pulse output frequency is 500Khz/Axis, 2-4 Axis linear interpolation, any 2 axis circular interpolation;
• 【Feature】ARM9 main control chip, FPGA core algorithm chip;18 photoelectric isolated digital inputs,3 photoelectric isolated digital outputs. The spindle can be configurated as Analog spindle(0~10V) and also Servo spindle.
• 【Slave function】 Slave X, Slave Y Or Slave Z, for Gantry machine with two independent motors on main axes;
• 【Power requirements】 The Power Supply for IO Port is 24VDC,minimum current is 0.5A, the Power Supply for Control ler system is also 24VDC,minimum current is 0.5A. Controller needs both power to work properly.
• 【Support G code file】 USB flash disk support for G code file input; Can transfer the files by Ethernet communication between the computer and DDCS V4.1 controller; No size limited of the G-code file.

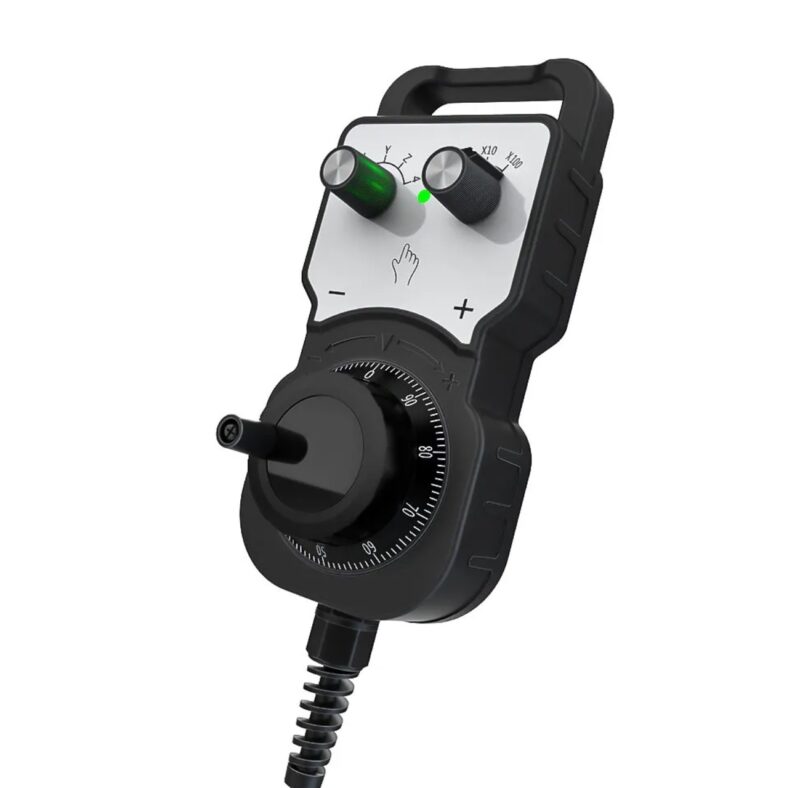

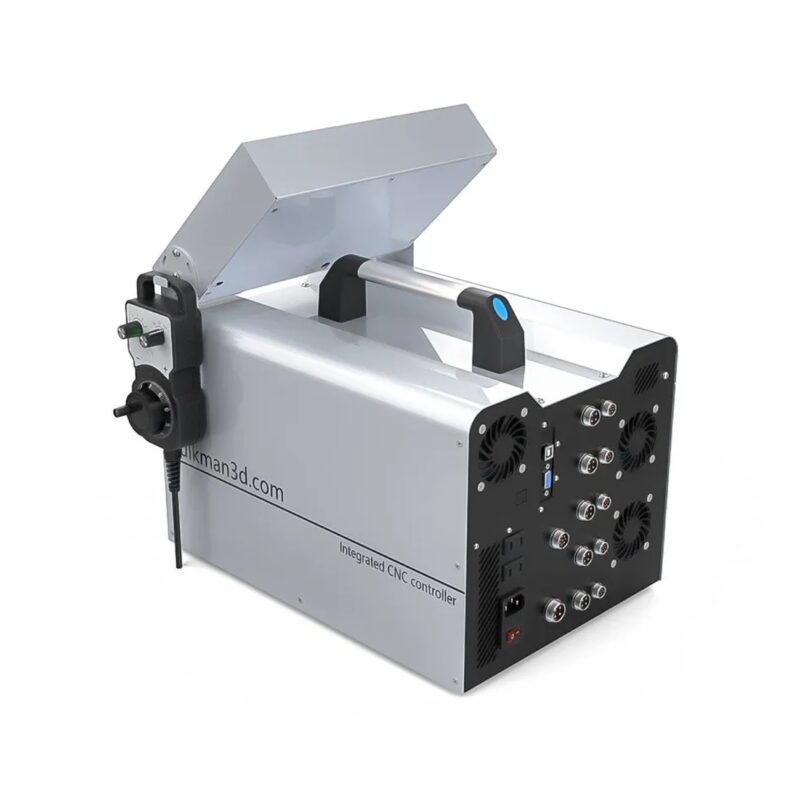

Price Includes: DDCS V4.1 4Axis Offline Control Box as Picture Shown MPG Handwheel as Picture Shown Hardware Configuration inside this Control Box: 1x 4 channel relay module 1x 24V 50W switch power supply 1x 1.5KW 220V VFD 1x Single phase two-stage filter for VFD 1x Sindle phase single-stage filter for main power supply 3x Noiseless DC Cooling fan 1x BH57 4Axis module 1x 800W main power supply (36V use for Split Hybrid Servo Motor ) Tips: Most Internal cables and modules inside this control box have been pre-connected, just follow our instruction to simply plug this box and it can work for your machine!
