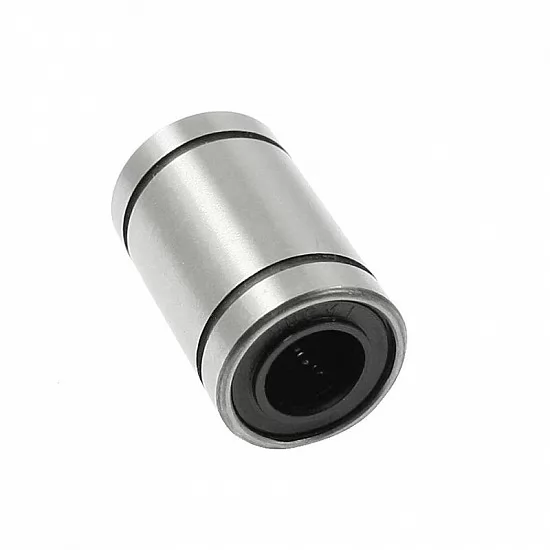

The LM6UU 6 MM Linear Motion Bearing gives you a very precise, safe and reliable linear motion system. Such linear motion bearings are mostly used in 3D printers and CNC(Computer Numerical Control) machines. An LM6UU 6 MM Linear Motion Bearing can provide low friction motion along a single axis, hence find a wide range of applications in DIY and robotics prototyping.

This LM6UU 6 MM Linear Motion Bearing closed-type ball bushing has a 6mm bore and 12mm outer diameter is suitable for use in a mounted slide unit to carry components. These Bearings have various standardized parts which are interchangeable, so need no worry about the replacement of any worn parts.

The linear motion ball bushing employs a high-carbon chromium steel case for strength and rigidity and a synthetic resin retainer plate for accurate ball guidance and low noise. The universal Ball Bearings is great for you to replace the damaged Ball Bearings in your devices for improving efficiency and saving the energy. Balls in the cage loop run along a smooth ball guide surface to ensure low noise even in high-speed operation.

Since Linear Motion bearings slide along the round shaft, for reliable and smooth motion the shaft must be lubricated. The quality of the shaft directly influences the quality of linear motion we get. So, using chrome-plated and hardened shafts may serve beneficial.

The linear motion bearings come in a variety of sizes as LM6UU, LM8UU, LM10UU, LM12UU, and LM16UU at mechblock.in,

Features :

1. Outer Casing: Chromium Steel
2. Low friction, optimum loading capacity, long life.
3. It has a linear bearing ball cage, a hardened coat at both end rings.
4. No worry if replacement of any worn part.
5. Low noise even in high-speed operation.

Package Includes :

1 x LM6UU 6 MM Linear Motion Bearing.
